These features are implemented in development builds; availability depends on your build, macOS version and devices. Recording sync, recovery, 4K capacity and long-run reliability are still being qualified. See the current limitations and next steps.

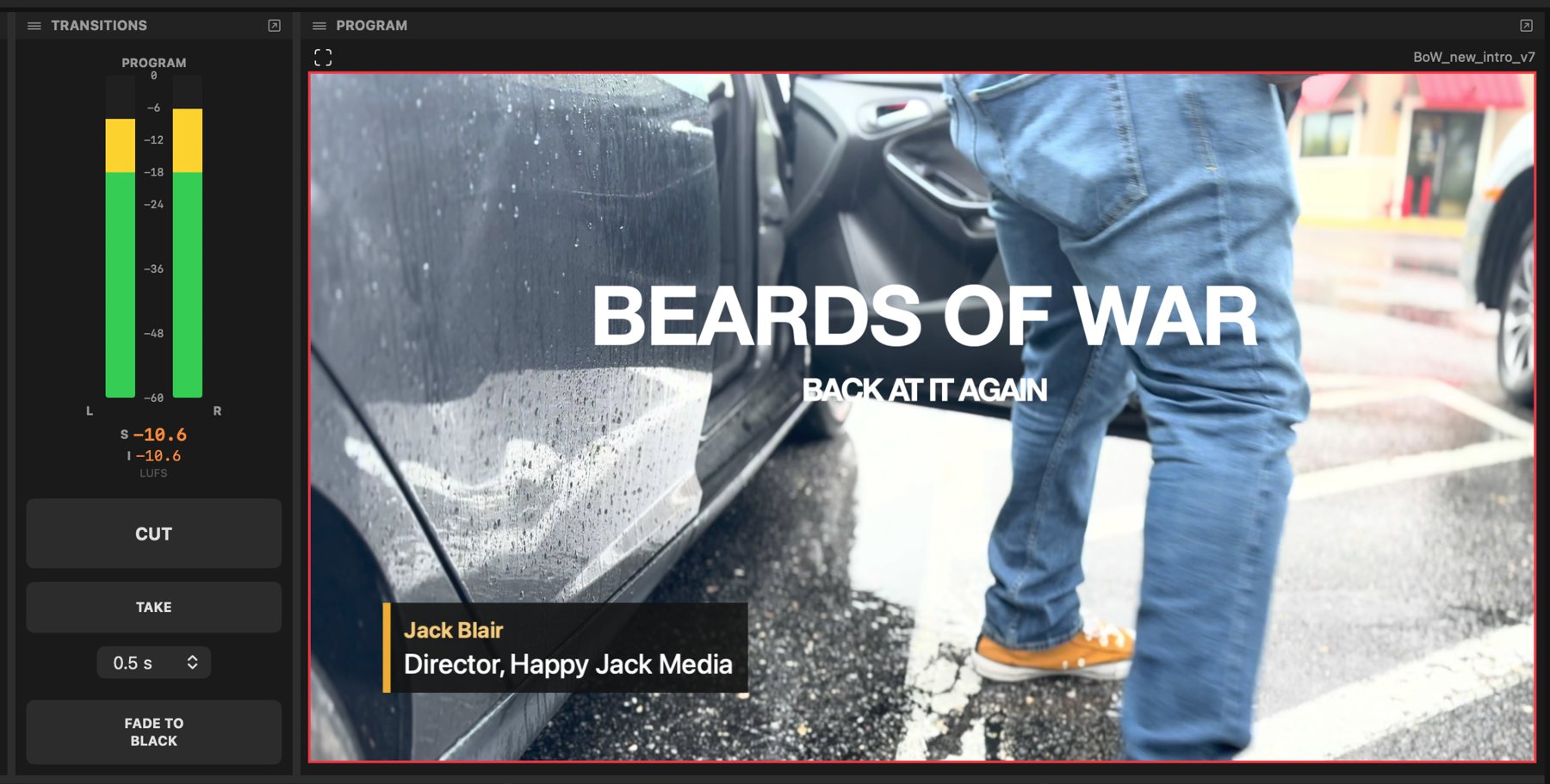

Multi-camera switching
Add the compatible cameras and capture devices you want in your show, name and order them, then switch Preview and Program with Cut, timed dissolve and fade to black. macOS permissions and device support apply. NDI input also needs a compatible runtime and network setup.

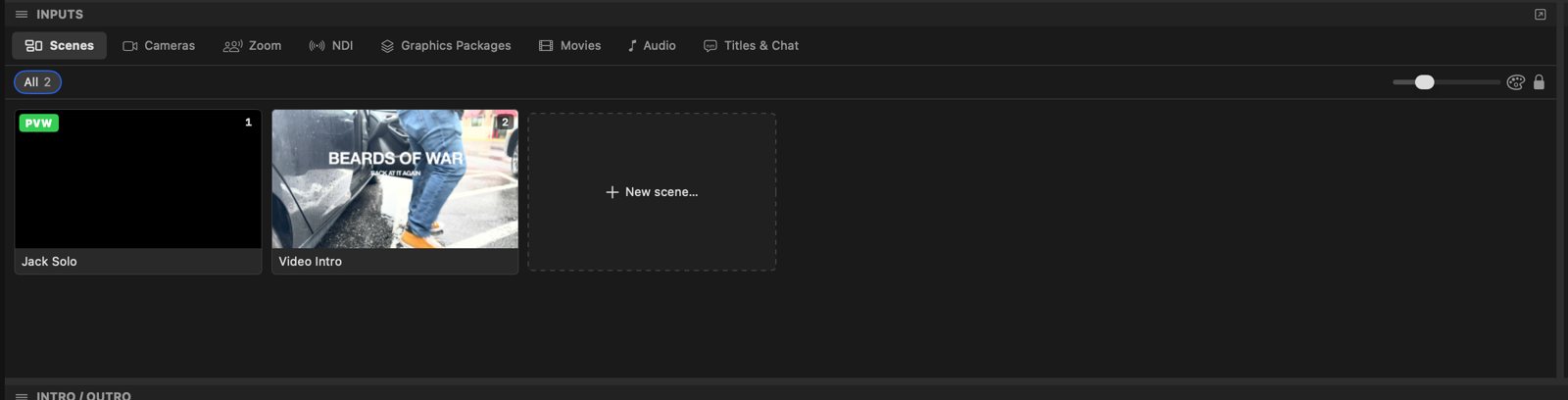

Scenes that fit your show
Build picture-in-picture, split, three-up, quad and nested layouts. Resize and position layers with grid snap and safe zones. The live camera crop editor is available in the tested private build; animated layers and a proven layer-capacity limit are still ahead.

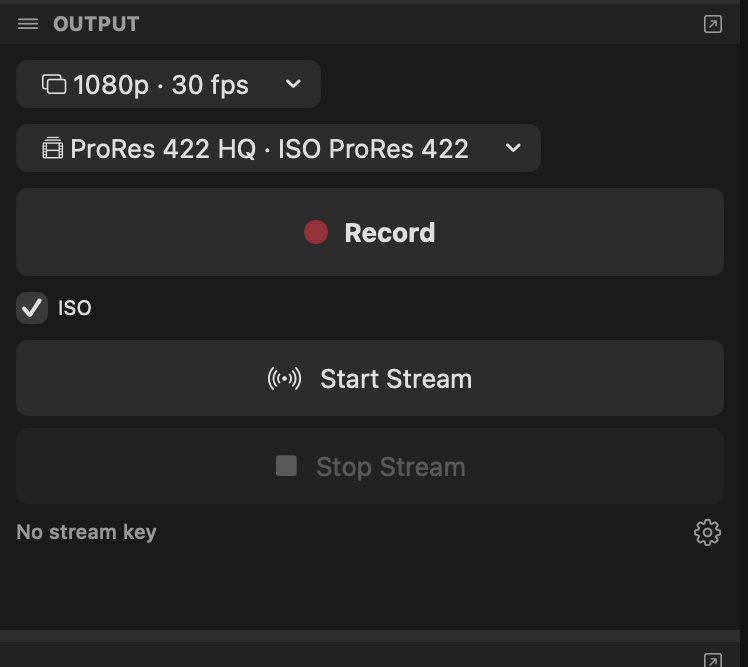

Program and source recordings
Choose ProRes 422 LT/422/HQ, HEVC or H.264 for Program. Arm separate source video and pre-fader audio recordings, with embedded timecode. Video ISOs have no reference audio track; keep the separate audio files. Sync and endurance validation remain in progress.
Graphics and titles
Stills, transparent browser sources (H2R Graphics), lower thirds and a time-of-day clock or timecode burn-in, keyed over Program.
Live captions, on your Mac
On supported locales in macOS 26 or later, transcribe the Program mix on-device and render captions over Program. Apple’s speech model must be available or downloaded first; caption setup and accuracy need a rehearsal.
Audience chat on screen
Connect an active YouTube live chat with your own YouTube Data API key, then feature selected messages as lower thirds on Program. API access and service limits apply; rehearse with your broadcast setup.
Stream and share
Send to one RTMP/RTMPS destination, with the stream key stored in the macOS Keychain. H.264 is the standard option; HEVC requires a receiver that supports Enhanced RTMP. Verify picture and audio at your destination before a show.

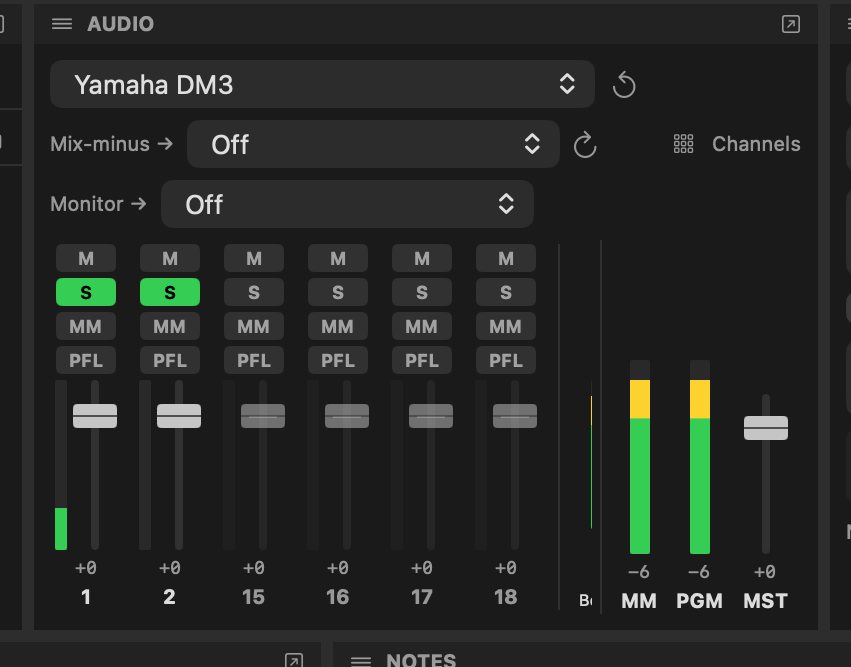

Companion and local controls
A local Bitfocus Companion module supports source selection, Cut/Take, tally and Program plus armed-ISO recording controls. These controls have been tested on Stream Deck XL. The browser remote defaults to this Mac; optional local-network access requires an access code.
